Detect, Diagnose, and Treat


HERizon


HERizon™ is Axora Medical’s comprehensive solution to support diagnosis-driven care for abnormal uterine bleeding (AUB) and other uterine conditions. The HERizon products bring together solutions for diagnostic and operative hysteroscopy in the office and operating room.



Product Features

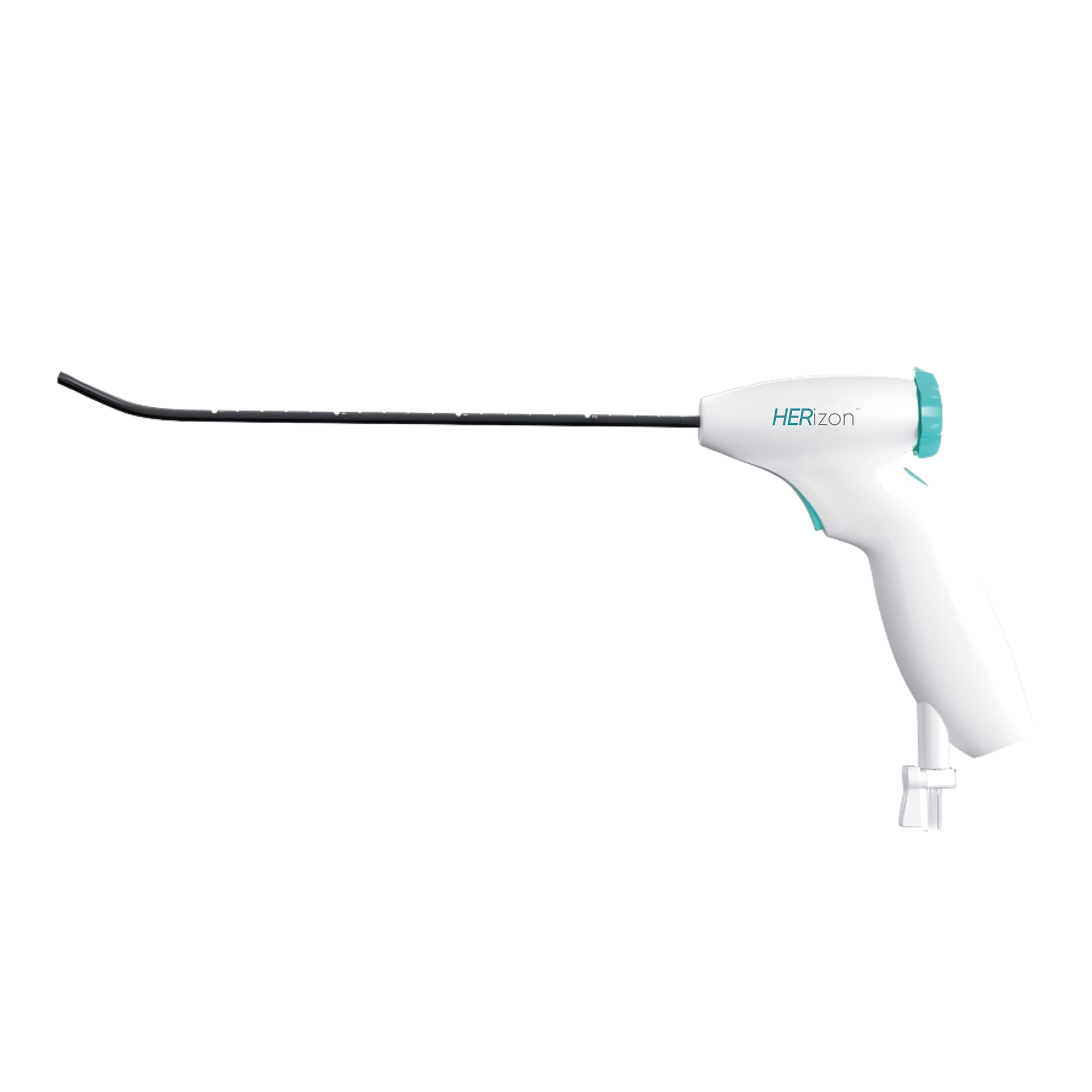

HERizon Vista Single-use Hysteroscope, Model 2

  • 22-degree angled cannula tip: Provides rigidity to help enter the cervical canal and articulation to navigate an array of uterine cavity positions.

  • 4.98mm outer diameter: Thin sheath requires minimal or no dilation.

  • Rotation knob: For observation of the fallopian tubes.

  • 2.0mm (6Fr) Working Channel: Allows for a broad spectrum of procedures such as direct visualization polypectomy, endometrial biopsy, D&C, and IUD removal.

  • In-Flow and Out-Flow Channels: For fluid management.

  • Image Resolution: 640,000 pixels.



Product Features

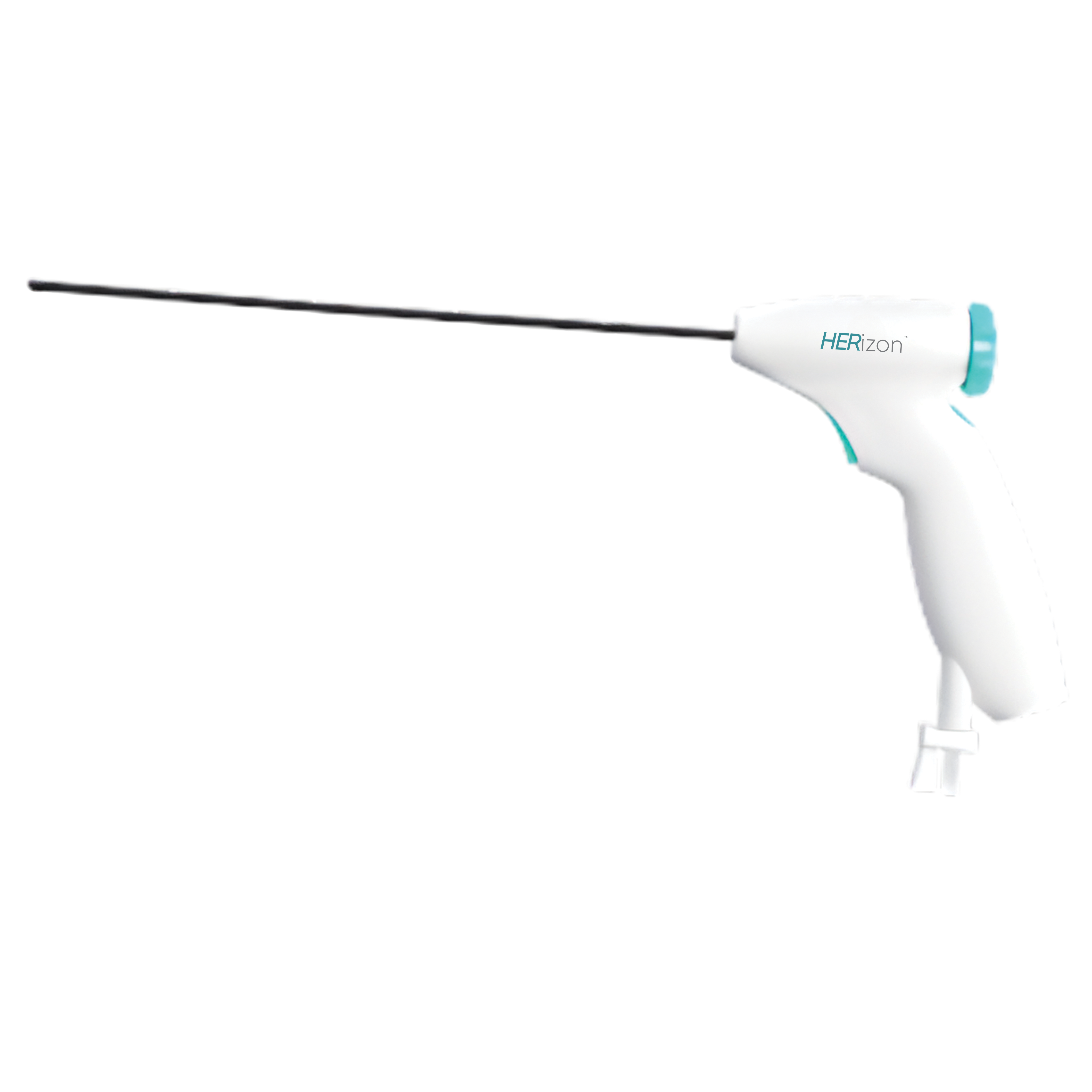

HERizon Vista Single-use Hysteroscope, Diagnostic

  • Straight cannula tip: Provides rigidity to help enter and evaluate the cervical canal.

  • 3.98mm outer diameter: Thin sheath requires minimal or no dilation.

  • Rotation knob: 180 degree left and right rotation.

  • 1.3mm (3.9Fr) Working Channel: Allows for office-based diagnostic hysteroscopy.

  • In-Flow and Out-Flow Channels: For fluid management.

  • Image Resolution: 160,000 pixels.



Product Features

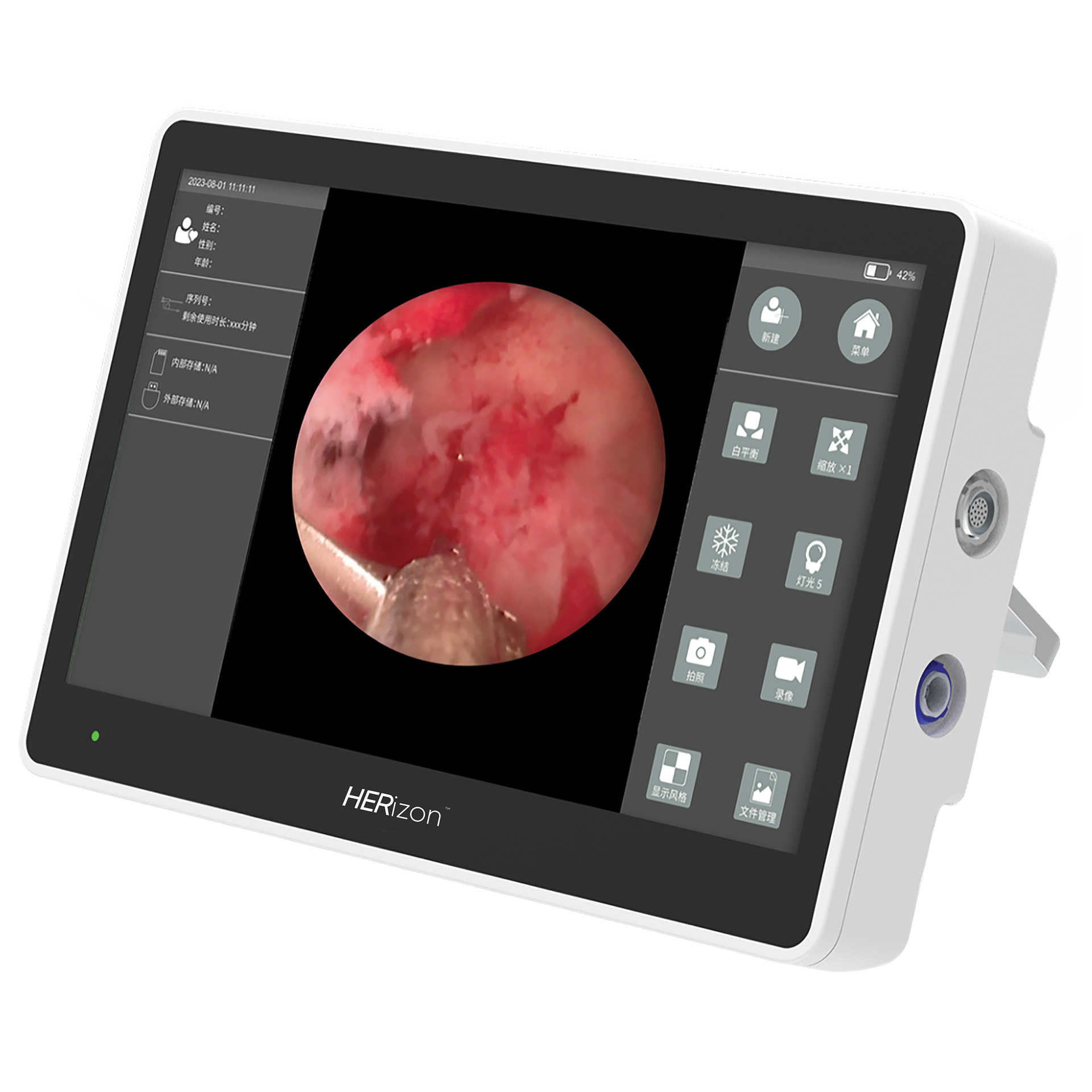

HERizon Vista ViewPoint

  • Image Processor with Integrated Monitor: Equipped with video, image, white balance, zoom, USB, and HDMI.

  • 13.3” monitor – compact and portable, suitable for office and OR.

  • Operating time – approximately 6 hours (when fully charged).



Why Physicians Choose HERizon


Clear Visualization

High-quality imaging supports accurate assessments of the uterine cavity, helping physicians make confident decisions at that point in care.

Office or OR Efficiency

A portable solution with single-use hysteroscopes and accessories supports efficient setup and turnover. Thin hysteroscope sheaths support minimal or no dilation and minimal anesthesia.

Procedural Flexibility

Single-use hysteroscopes and compatible single-use accessories support a range of needs from diagnostic evaluation, endometrial biopsy, D&C, IUD removal, and direct visualization polypectomy (when used with Resectr).

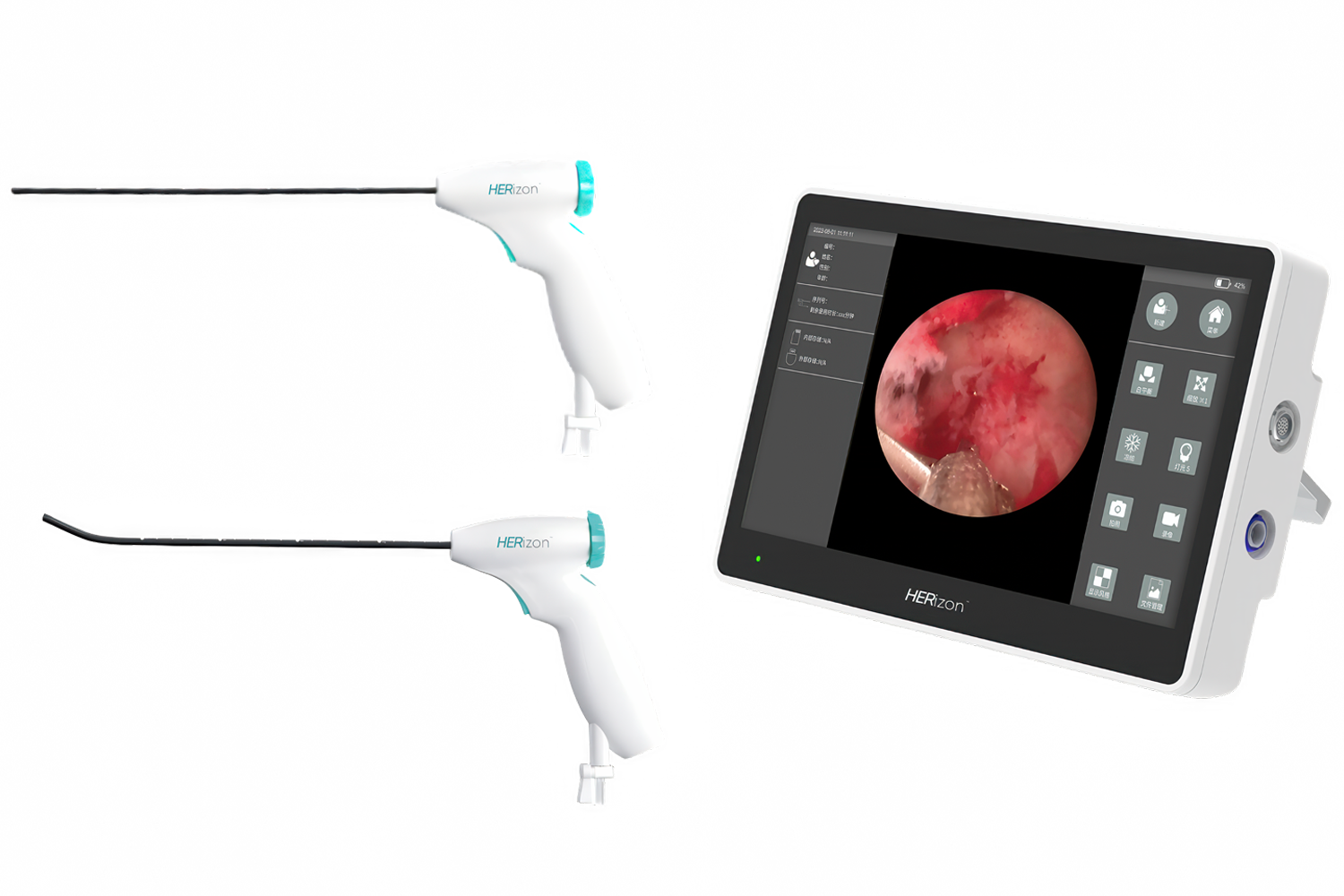

The HERizon Vista system advances hysteroscopic care with purpose-built solutions designed for clarity, efficiency, and patient comfort. The system includes single-use hysteroscopes and an all-in-one image processor and monitor designed to bring the power of high-definition imaging into any clinical setting.

Whether in the office or the OR, the HERizon Vista system and HERizon accessories empower physicians to transition seamlessly from diagnosis to treatment.






Disposable Endoscopic Accessories

A full suite of 6 Fr. single-use instruments specifically engineered for the HERizon Vista Single-Use Hysteroscopes working channel.

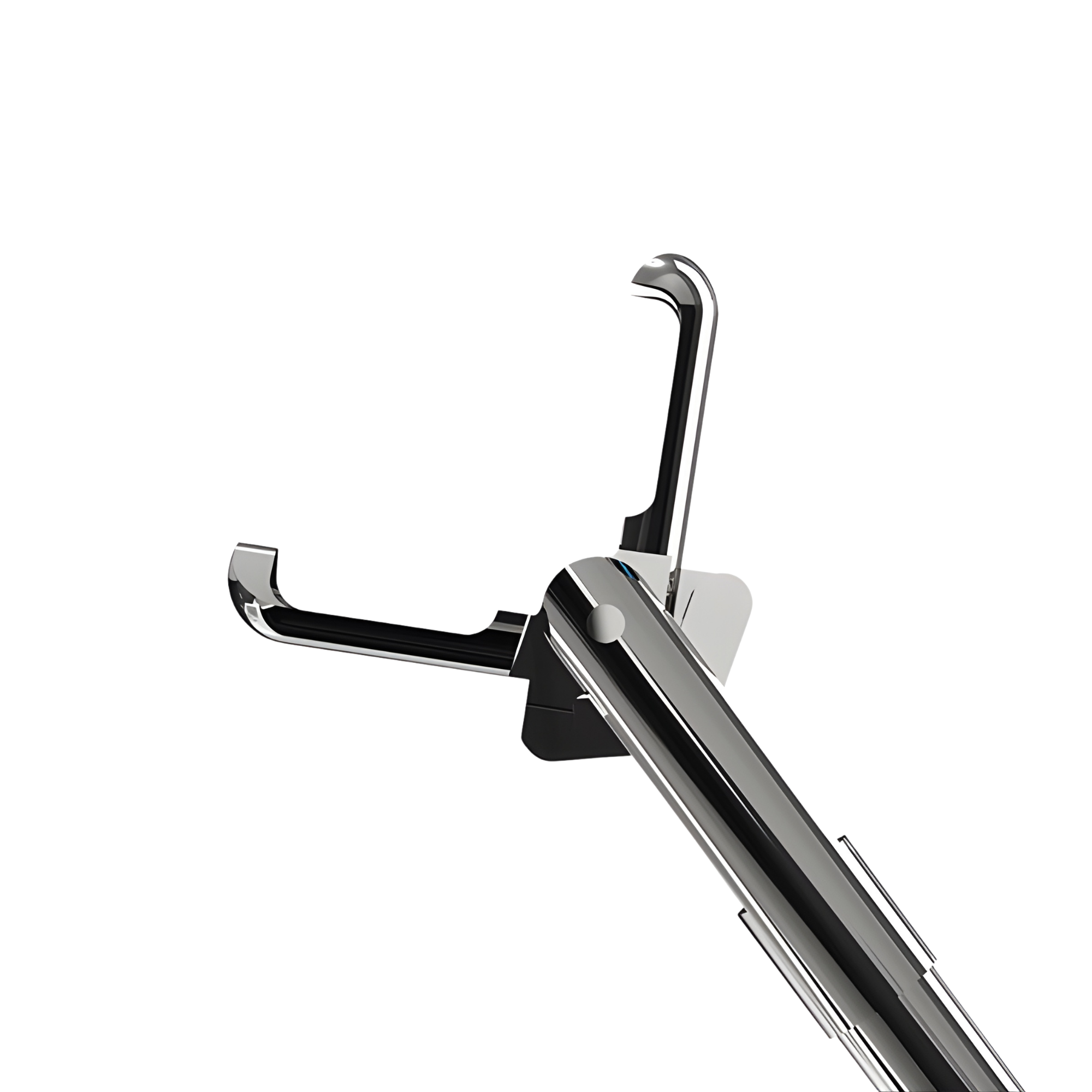

FOREIGN BODY GRASPER

Optimized for foreign body retrieval and IUD removals

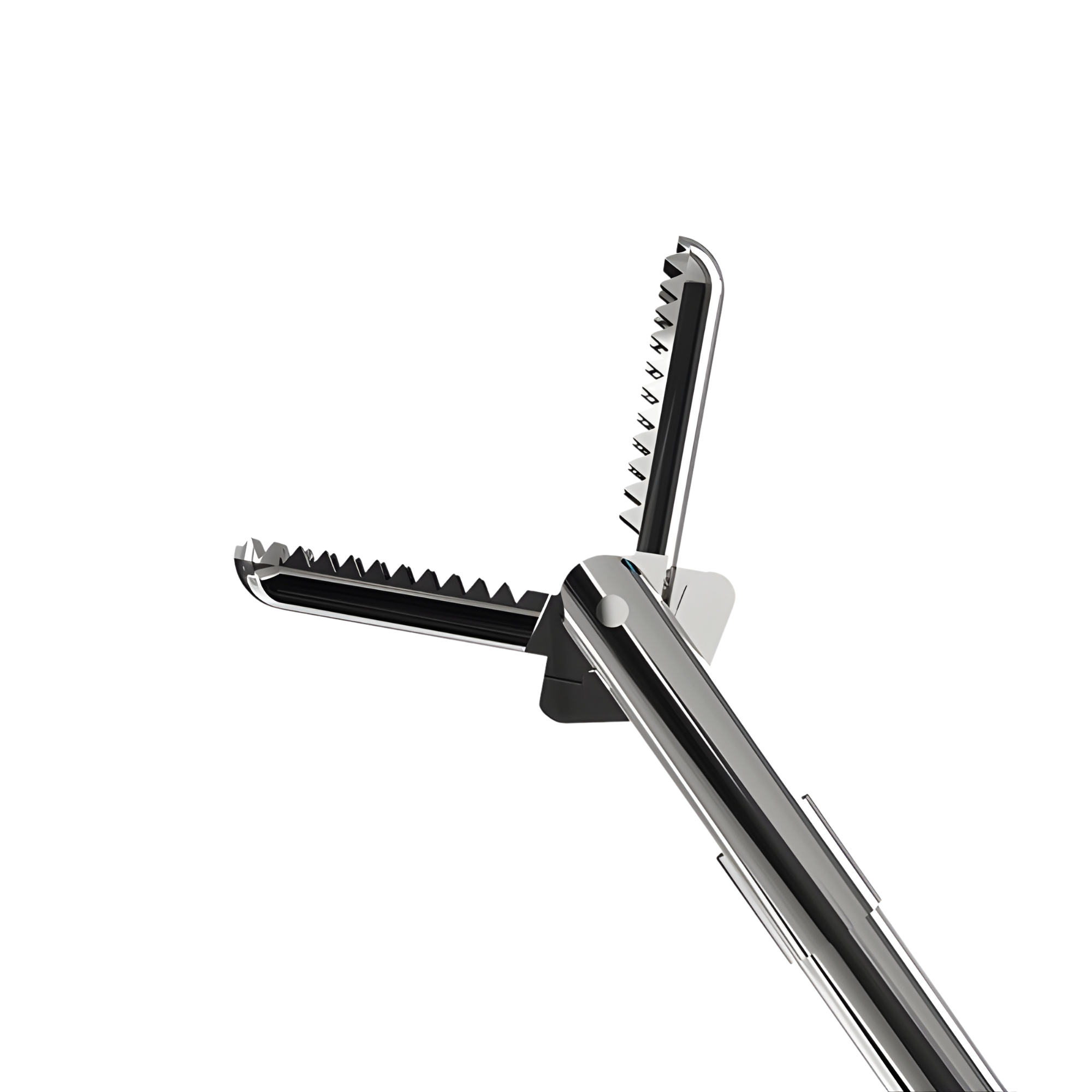

ALLIGATOR FORCEPS

Available in two sizes for grasping, manipulating, and retrieving tissue

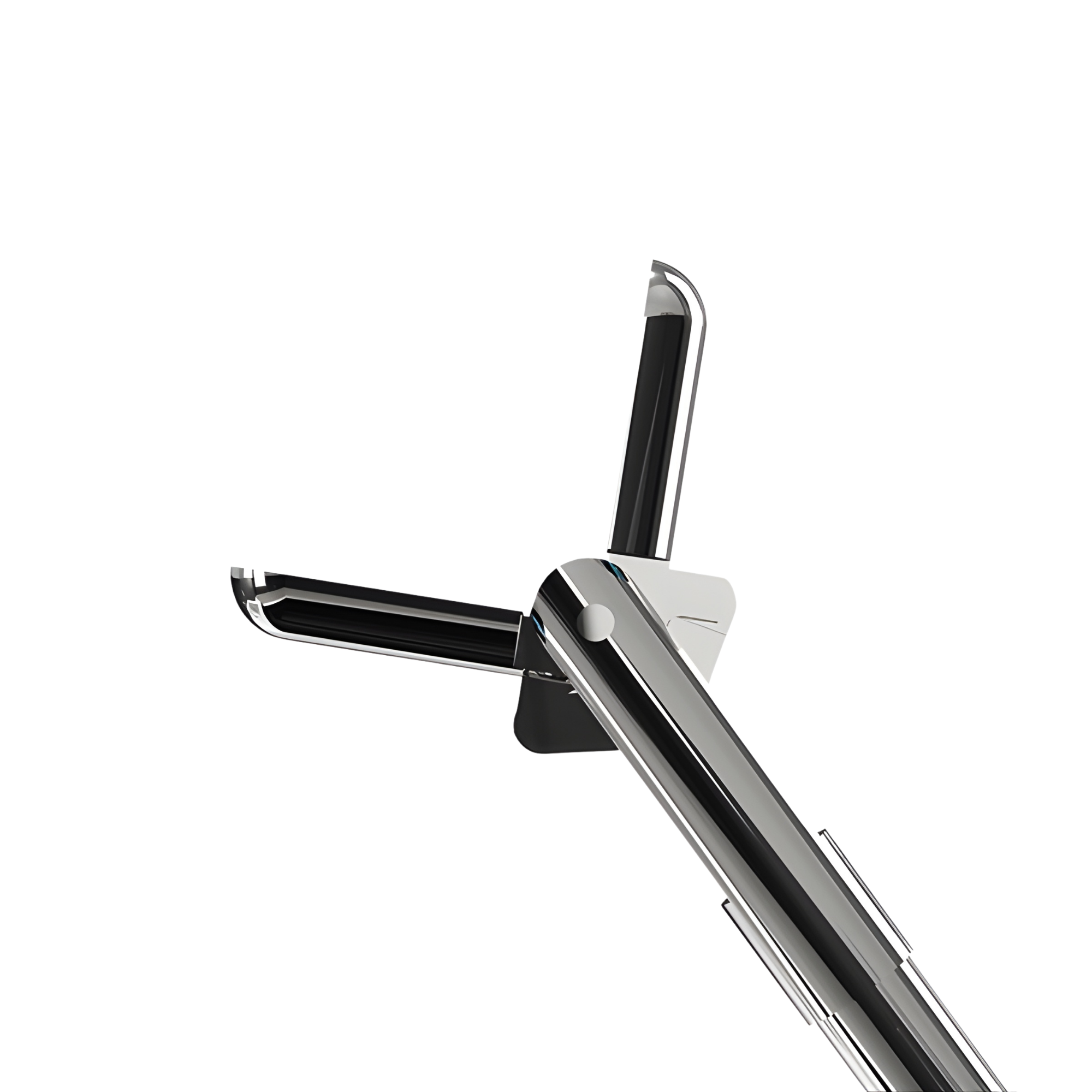

BIOPSY FORCEPS

For targeted tissue sampling under direct visualization

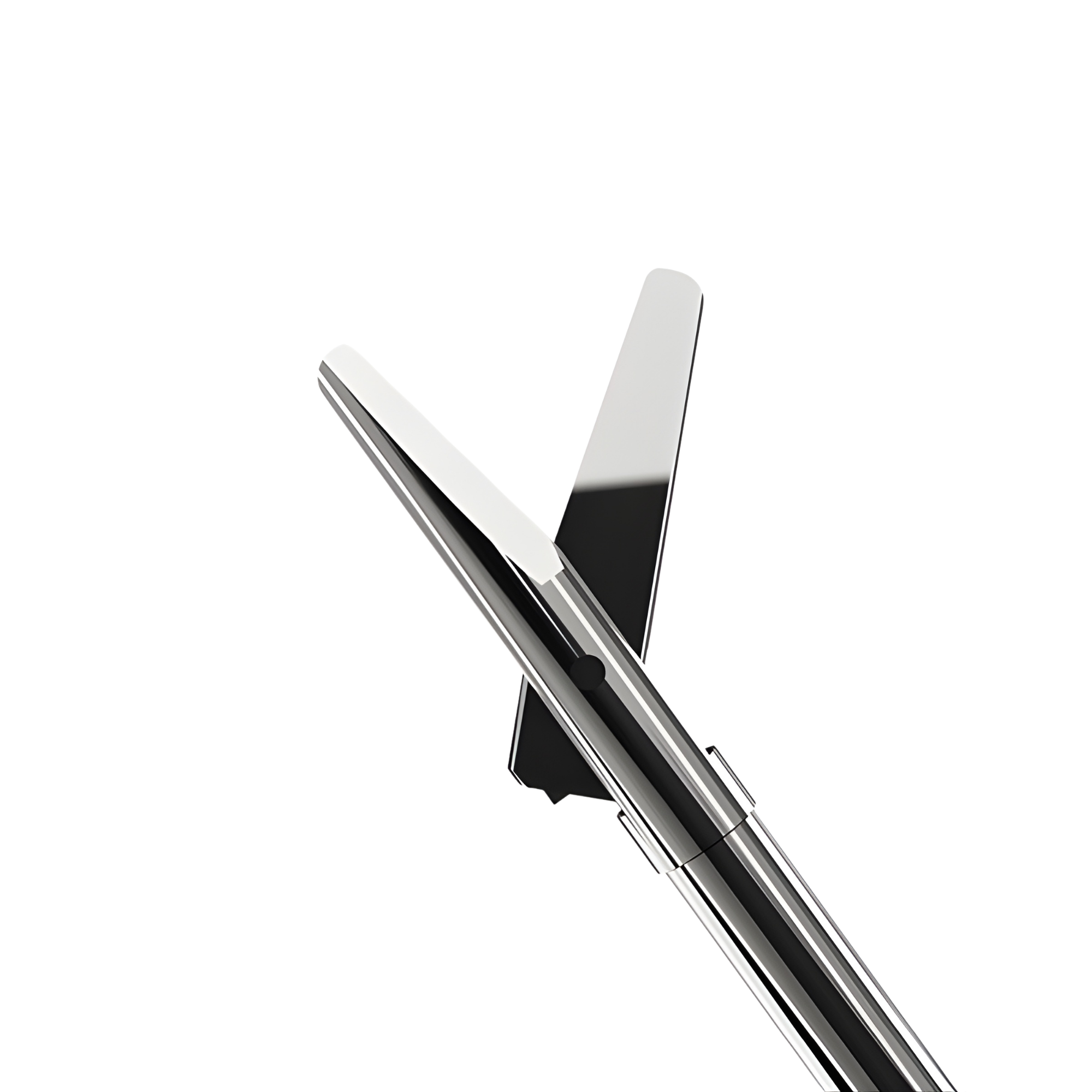

ENDOSCOPIC SCISSORS

Available in two sizes with high-precision blades for tissue cutting and adhesiolysis.

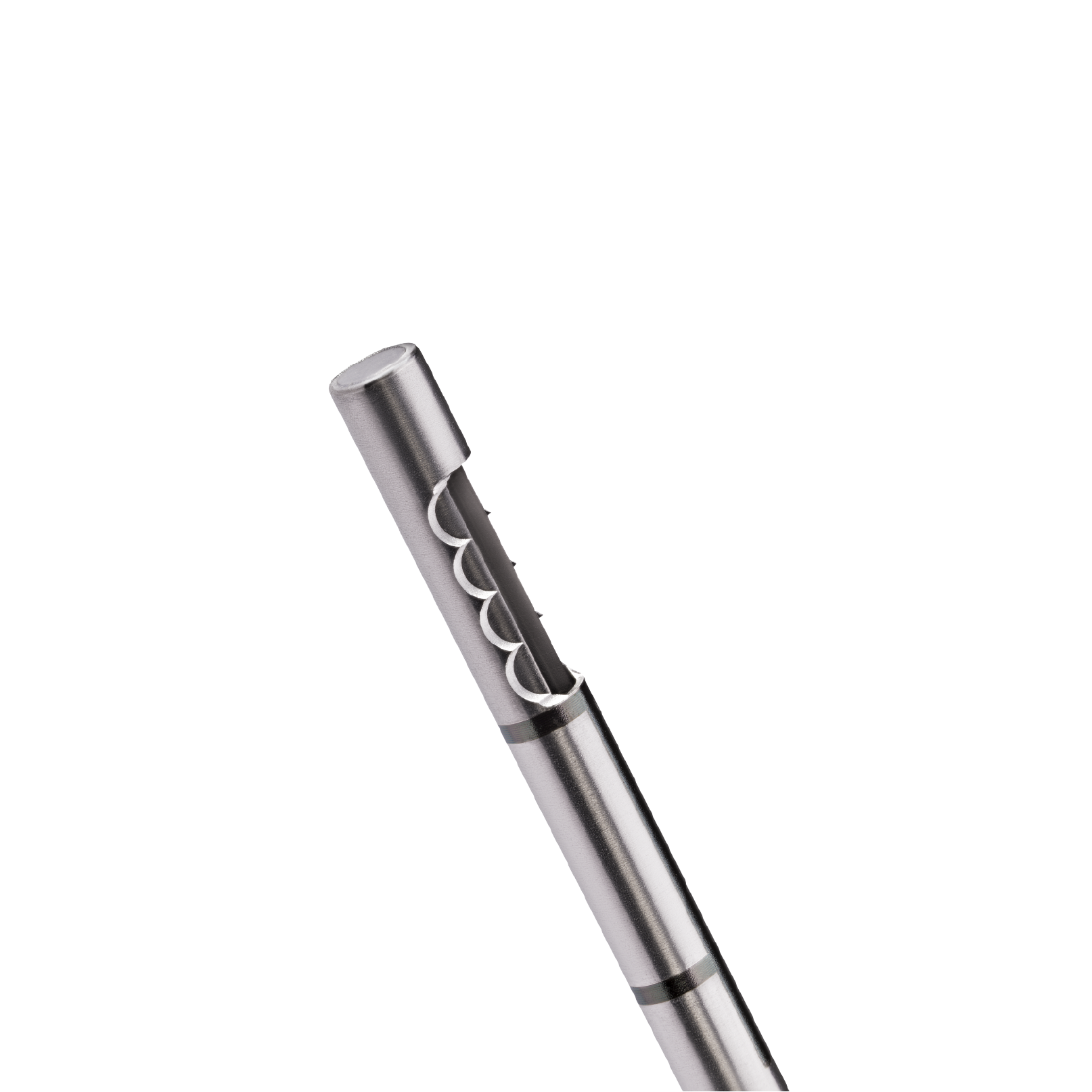

RESECTR

Manual resecting device for polypectomy

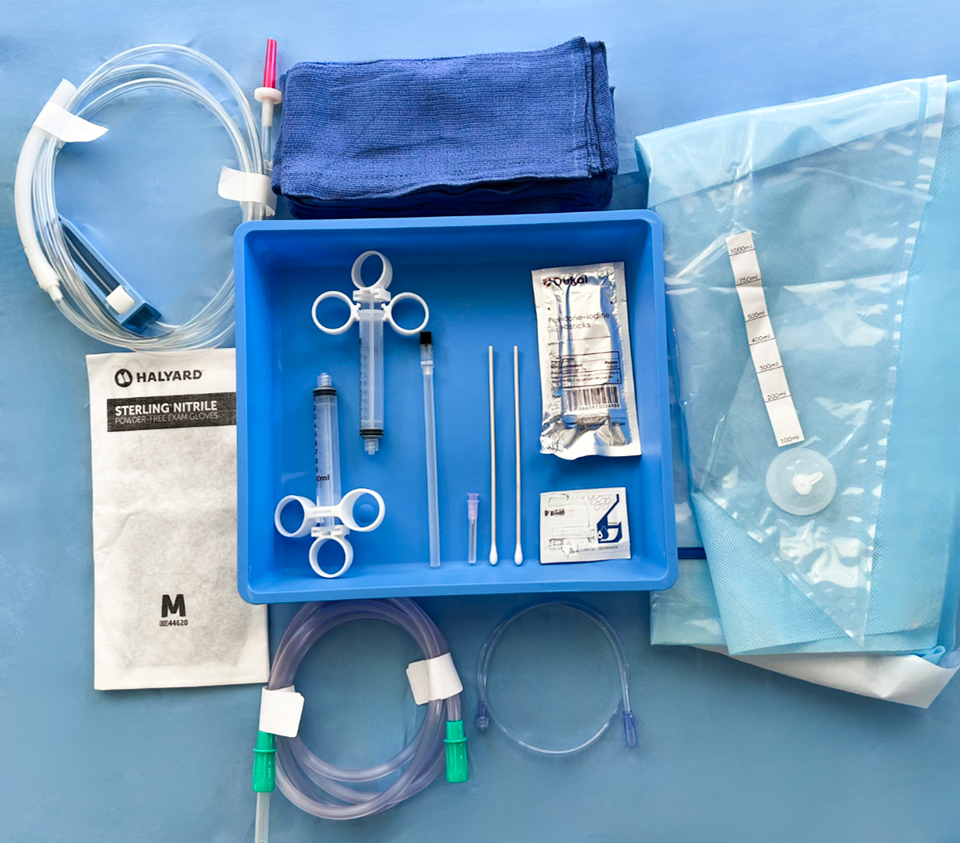

HERizon Hysto-Kit

Our ready-to-use supply kit is designed to support in-office hysteroscopy and includes essential single-use items—such as draping and tubing—to help streamline set up and keep your procedures moving efficiently.

  • Streamline workflow with fewer steps and faster room turnover.

  • Support procedural consistency with standardized supplies.

  • Improve efficiency through reduced inventory management and waste.




See HERizon in Your Hands

Struggling with delays and limited access to hysteroscopy? Contact us for a hands-on demonstration and to see how in-office hysteroscopy can support timely evaluation and informed decision-making.


Request a Demo



The HERizon Vista System and the HERizon Endoscopic Accessories are manufactured by Jiangsu Jiyuan Medical Technology CO, Ltd.

Resectr™ Tissue Removal Device: Manufactured by Minerva Surgical.




FAQs

What procedures can be performed using the HERizon Vista System?

The HERizon Vista System is intended to be used for viewing of the adult cervical canal and uterine cavity for the purpose of performing diagnostic and operative procedures, such as biopsy or targeted tissue removal when used with compatible accessories.

Where can the HERizon Vista System be used?

The HERizon Vista System is designed for use across multiple care settings, including physician offices, surgery centers, and hospital ORs.

Can the HERizon single-use hysteroscopes be used with other systems or equipment?

No. The HERizon Vista single-use hysteroscopes must be connected to the HERizon Vista ViewPoint Endoscopic Video Image Processor.

What additional equipment do I need to use the HERizon Vista System?

A source of suction, a source of distention media, tubing for inflow and outflow, and a tissue catch for pathology. Ask your Axora Medical representative about our HERizon Hysto-Kit, which includes supplies for performing a hysteroscopic exam.

What is the benefit of a single-use hysteroscope?

Single-use hysteroscopes eliminate the need for reprocessing between procedures.

Can the HERizon Vista single-use hysteroscopes be reused?

No. The HERizon Vista Single-Use Hysteroscopes are for single use only. Reusing, reprocessing, or resterilization may compromise the structural integrity of the device and/or lead to device failure which, in turn, may result in patient injury, illness or death.

Reusing, reprocessing or resterilization may also create a risk of contamination of the device and/or cause patient infection or cross-infection, including, but not limited to, the transmission of infectious disease(s) from one patient to another. Contamination of the device may result in patient injury, illness or death.

How do I dispose of HERizon hystersocpes?

After use, dispose of product and packaging in accordance with hospital, administrative and/or local government policy.

What accessories are available for use with the HERizon Vista System?

The HERizon Vista System can be used in conjunction with a variety of optional accessories. The HERizon Vista Single-Use Hysteroscope, Model 2 working channel has an inner diameter of 6 Fr. Additional accessories may be used which are compatible with this size of a working channel, such as:

  • HERizon Disposable Endoscopic Forceps – Biopsy (Catalog # JY-PK-350-18-S)
  • HERizon Disposable Endoscopic Forceps – Foreign Body Grasper (Catalog # JY-C-350-18-S)
  • HERizon Disposable Endoscopic Forceps – Alligator (Catalog # JY-CC-350-18-S)
  • HERizon Disposable Endoscopic Forceps – Alligator XL (Catalog # JY-CC-450-18-S)
  • HERizon Disposable Endoscopic Forceps - Inverted Tooth (Catalog # JY-DC-350-18-S)
  • HERizon Disposable Endoscopic Scissors (Catalog # JY-JD-17-350-B)
  • HERizon Disposable Endoscopic Scissors XL (Catalog # JY-JD-17-450-B)
